TCO is a 5x1 4K Seamless Presentation Scaler Switcher with Multi-viewer,  with 2 HDMI,  1 DP,  1 Type C,  1 VGA inputs,  max. input resolution Support upto 3840*2160@30 4:4:4,  while HDCP2.2 and  below compatible. Outputs have 1 HDBaseT and  1 local HDMI loop out,  Or optional to be 1 MPO optical with 1 HDMI Loop out,  Output resolution for output is scalable,  with Max. output resolution to be 3840*2160@30 4:4:4.

TCO is integrated with the functions of multi-view,  4K seamless switching,  scaler output,  switching effect present,  48V Mic,  Line input,  Audio embed & De-embed,  background audio adjustable,  Mic volume adjust,  BGM with Mic embed audio output,  Stereo\mono switching,  balanced audio interface. It is your prefect multifunctional presentation switcher for mid-size conference room solution.



Acknowledged by

Features

· Support   Multiview mode with 5 pictures,  4pictures,  PIP,  Single picture full screen display.;

· Support   4K Scaler input & Output;

· Support   seamless switching with switch effects (Fade in/out,  Fast switching);

· Input Support  2 HDMI,  1 DP with audio embed,  1 Type C,  1 VGA inputs with audio embed;

· Input resolution upto 3840*2160@30 444,  Downward compatible ;

· Input HDCP Support  HDCP2.2,  Downward compatible;

· Support  auto switch input EDID from output EDID;

· Output port Support 1 HDBT(Support POC 24V) or 1 MPO optical port, with 1 HDMI loop out;

· Output resolution Max. 3840*2160@30 444 Support Scaler multiple resolution Output or auto setting;

· Ethernet cable Output port HDBaseT 4K transmit upto 40m , 1080P transmit 70m;

· MPO Optical cable Output port MPO 4K transmit 300m;

· Support video auto switching manually or automatically. (1)  Support  RS232, IR, TCP/IP, front panel buttons control ;

· Support  B/S GU Iinterface;

· Support  far-end RS232 control main device, main device RS232 control far-end device;

· Support  TCP/IP firmware upgrade

· Support  Power-off memory function;



Specifications



Video

HDMI

3840x2160@30Hz;1080p@50/60HZ;720P@50/60HZ;

DP

3840x2160@30Hz; 1080p@50/60HZ;720P@50/60HZ;

TYPE-C

3840x2160@30Hz; 1080p@50/60HZ;720P@50/60HZ;

VGA

1920x1080,    1680x1050,  1600x900, 1440x900,  1400x1050,    1366x768,  1360x768,  1280x1024,    1280x800,  1280x768,   1024x768,  800x600

HDCP

HDCP2.2/HDCP1.4;

Audio

Formats

PCM 2Ch

Sample Rate

48kHz

Bit Rate

Up to 24-bit

Distance

Cat5e/6@4K

Up to   115ft/35m

Cat6a/7@4K

Up to 130ft/40m

Cat5e/6@1080p

Up to   197ft/60m

Cat6a/7@1080p

Up to   230ft/70m

Band width

10.2Gbps

control port

1x9-Pin D-sub[RS-232]

1xRJ45[IP Control/LAN   Serving]

1xIR[Infrared remote   control]

Adaptor

Input : 100-240V~,  50/60Hz, Output : DC 24V 3A

Power Consumption

Less than 30W

Working Temp

0 +50

Working Humidity

10% 90%

Specifications

Video interface

HDMI

HDMI,VGA

HDMI,VGA

Number of inputs

2 HDMI,1 DP,1Type-C,1 VGA

4 HDMI,1VGA

3 HDMI,1 DP,1VGA

Number of outputs

1 HDMI,1 HDBT

1 HDMI

1 HDMI,1 HDBT

4K @ 30Hz

YES

YES

YES

4K @ 60Hz

YES

YES

EDID Management

YES

Audio separation

YES

YES

YES

IR

YES

YES

YES

RS232

YES

YES

YES

Special effects switching

YES





TCO DIAGRAM.png


1)    Connect HDMI source devices (e.g. Blu-ray DVD) to HDMI input ports of the scaler switcher with HDMI cable. Connect VGA source device (eg. PC/note-book) to VGA input ports of the scaler switcher with a VGA cable.

2)    Connect HDMI display device to the HDMI output port of the scaler switcher with a HDMI cable.

3)    Connect speaker, headphone or specialized amplifier to AUDIO ouput port of the scaler switcher.

4)    Connect control device (e.g. PC) to RS232 port of the scaler switcher.

5)    Connect DC12V power adaptor to the power port and power on.

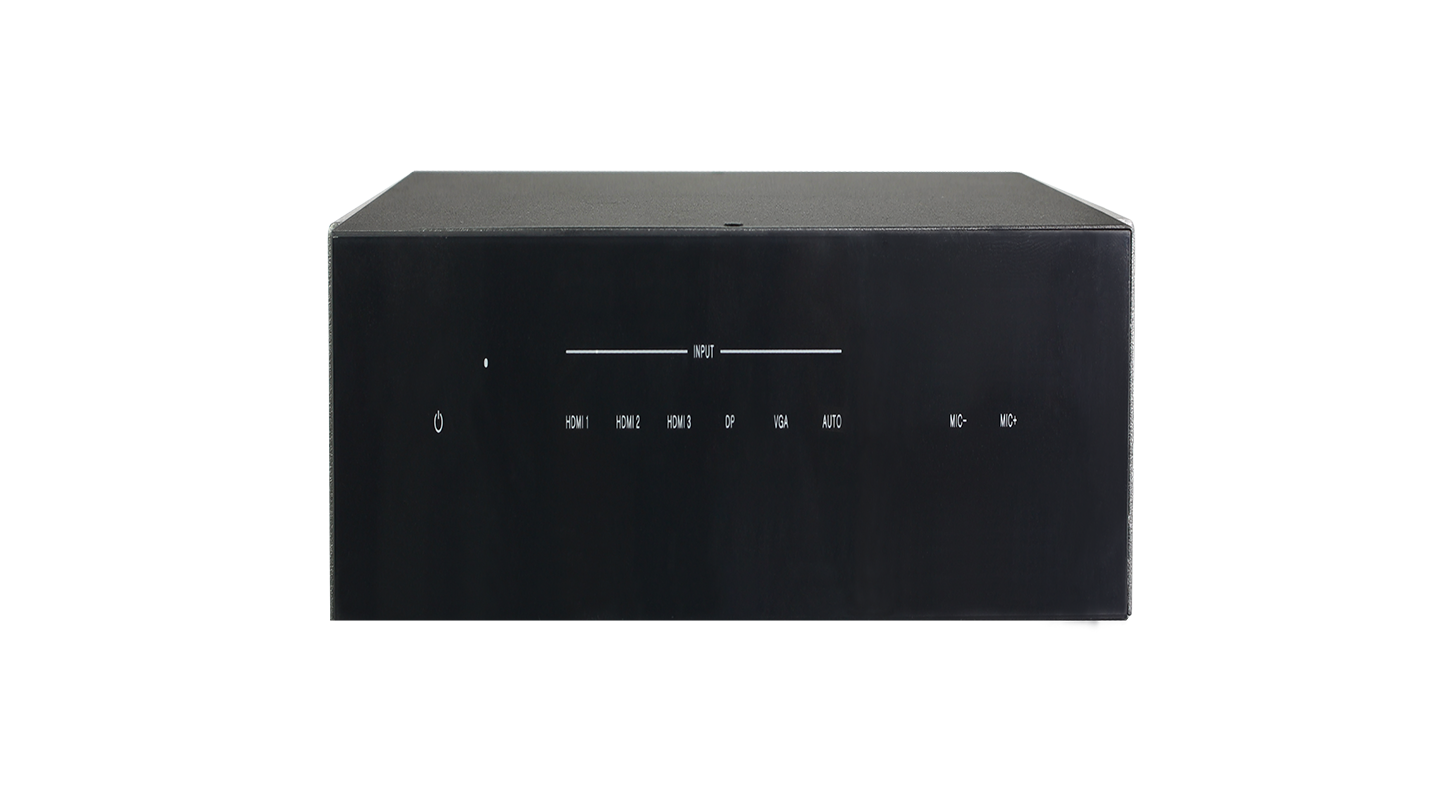

Front Panel

S/N

Subject

Description

-1

Power Switch

Power on/off

-2

Power Indicator

Green light onPower on;

Blue light onStand by;

-3

IR Receiver

Build in IR receiver and   receive IR from the remote control;

-4

VIDEO Button

5 Input buttons corresponds   to the Input source, and the navigation button up (DP) down (TYPE-C) left   (VGA) right (Auto);

-5

Automatic switch Button

Automatic   /Manual mode switch button;

-6

Menu Button

OSD menu button;

-7

Audio button

Audio selection switch button;

-8

Layout switch button

Multi-View window   layout;

-9

MIC/Line volume button

MIC/LINE volume   adjustment button;

-10

VIDEO volume button

Input source audio   volume adjustment button;

Back Panel

S/N

Subject

Description

-1

VIDEO INPUTS

2 HDMI1 DP1 TYPE-C1 VGA(Audio Embed)Input ;

-2

AUDIO MIC/LINE

MIC/LINE Input port ;

-3

MIC/LINE switch

48V:MICInput Support ;

MIC: MICInput ;

Line: Unbalanced Line Input ;

-4

VIDEO OUTPUT

HDMI Local loop out port;

-5

AUDIO OUTPUT

Balanced Audio Output port ,Support audio mix   Output;

-6

HDBaseT OUTPUT

HDBaseT distant Output port , Support  POC 24V;

-7

HDBaseT IR

HDBaseT IR Input Output port;

-8

USB 5V Power Supply

Provide external power supply via USB   5V/500mA;

-9

CONTROL

IR EXTconnect to IR receiver (5V), use remote controller to control   main device;

RS232connect to control device, via RS232 sent command to control   main device;

IP CONTROLand control device via TCP/IP by GUI;

-10

DC 24V

Power Input port, connect   to 24V 3A power adaptor;

-11

Ground Terminal

Make the device well grounded;



Ultra 4K

TCO has been designed to use 4K Resolution. It also includes a range of features beyond Resolution, such as: High Dynamic Range (HDR), Wider Color Spectrum, Color Bit Depth, Immersive Audio and more. These performance advances enable unprecedented visual experience, content and other devices to fully replicate the richness of life’s sights and sounds, and allow viewers to more accurately experience the content creator’s vision.


Pure hardware modular design

TCO technology implies pure hardware design without any operation system which also avoids the X86 controller crash, blue screen, viruses and other common problems. This means you save money on proprietary hardware and it simplifies the complexity of your video wall system making it easier to troubleshoot and support. Save up to 40% in upfront costs by replacing a traditional proprietary video wall processor with Tricolor all series products


Multiple control methods

The product can be controlled by on-panel button, IR remote control, RS-232, LAN , Upper Computer and Web GUI.
