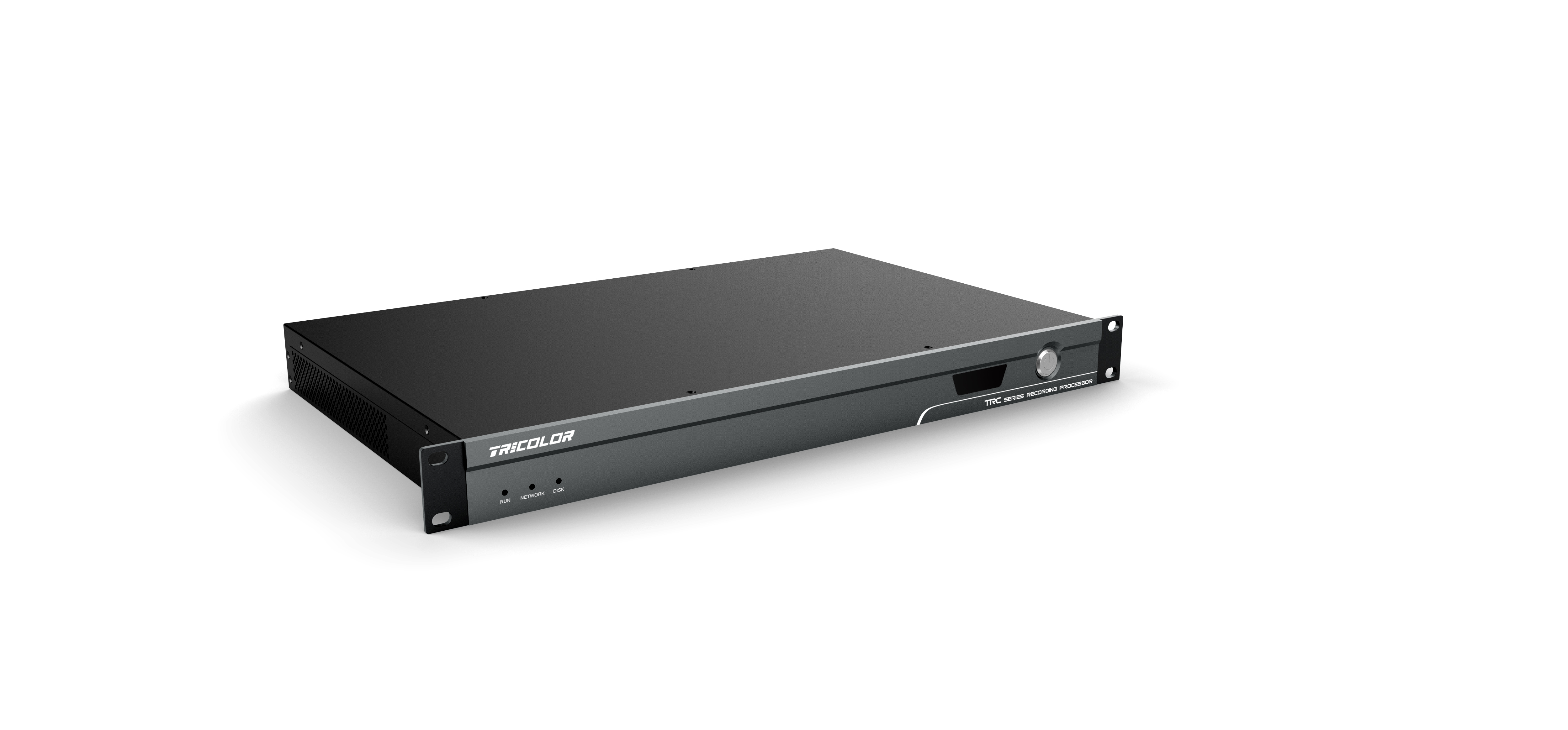

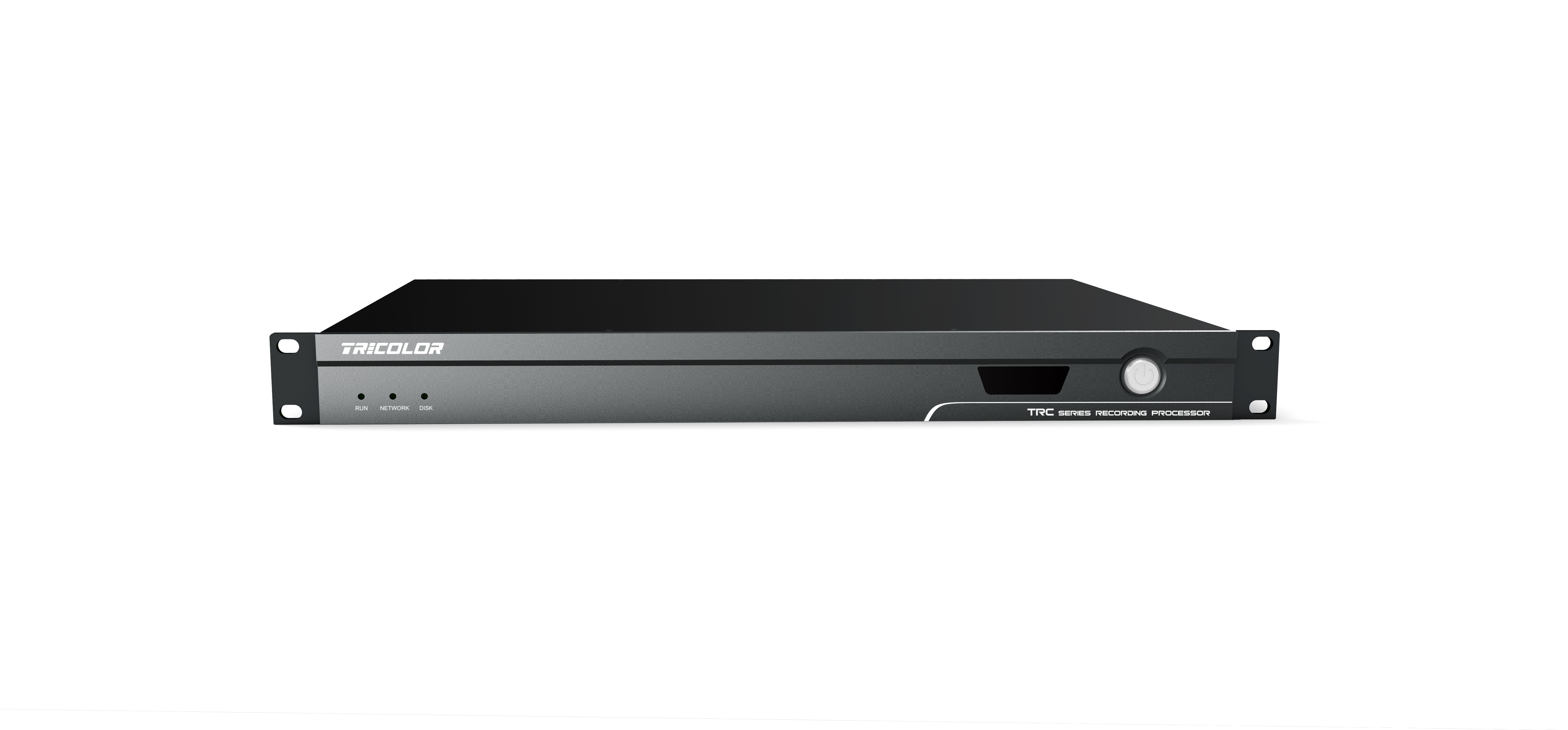

The TRC series recording host is a multi-task distributed recording and broadcasting, which adopts an embedded Linux system and a visual operation interface. It can meet the recording requirements of multi-channel video and audio signals in multiple places, and provide users with a high-definition and intelligent conference recording and broadcasting experience. It is mainly used in conference rooms, multi-function halls, training rooms, digital method family, telemedicine, etc.
Multi-Singal Recording Supports up to 6 channels of real-time recording, freely add subtitles, credits, logos
Picture Synthesis Support multi-channel picture synthesis ability, provide 2/4/6/8 and other synthesis mode selection, synthesis picture. Support screen preview function
Visualization Control Support web control function
High Capacity Standard 2T hard disk, can support more than 2000 hours of recording while ensuring video clarity. It can be expanded according to the user's demand.
Special Effect Switching It can be used as a simple stunt stage, different special effects appear when switching screens, and it can display 12 different effects.
| Model | TRC-400 | TRC-600 |
| Structure | Distributed | Integrated |
| Recording Task | Quad-task type | Single-task type |
| Video Port | Input:HDMI/DVI/VGA/YPbPrOutput:HDMI/DVI/VGA | Input:6 SDI, 2 HDMI/VGA Output: 2 HDMI/VGA |
| Audio Port | Input: 2 MIC, 4 LINE Output: 4 LINE | Input:8 MIC, 3 LINE Output: 3 LINE |
| Control Method | RS485、RS232 | RS485、RS422、RS232 、IR 、 I/0 |
| Input Resolution | 1920x1200@60Hz | 4K@30Hz |
| Pixel Signal Bandwidth | 165MHz | 166MHz |
| Input & Output Impedance | 75Ω | 75Ω |
| Audio Impedance | 20KΩ | 20KΩ |
| Bandwidth | 20-20KHz | 20-20KHz |
| Signal To Noise Ratio | Higher than 60dB | Higher than 61dB |
| Network Interface | 10M/100M//1000M | 10M/100M//1000M |
| Video Codec Protocol | H.264/H.265 | H.264（SVC/HP/MP/BP）/H.265MP |
| Compressed Frame Rate | 5 ～ 60FPS | 5-30FPS |
| Video Bit Rate | 50kbps ～ 16Mbps | 50kbps ～ 16Mbps |
| Stream Type | video/audio/mix | video/audio/mix |
| Audio Codec Protocol | G.711 /AAC | G.711 /AAC |
| Power Supply | 220V 50HZ | 220V 51HZ |
| Power Consumption | 39W | 40W |
| Dimension | L：482.6mm、W:292mm、H:44mm | L:438mm、W:340mm、H:43mm |
| Weight | 5KG | 5KG |
| Temperature | -10℃ ~ +70° C | -10℃ ~ +71° C |
| Humidity | 10% ~ 90% | 10% ~ 91% |
