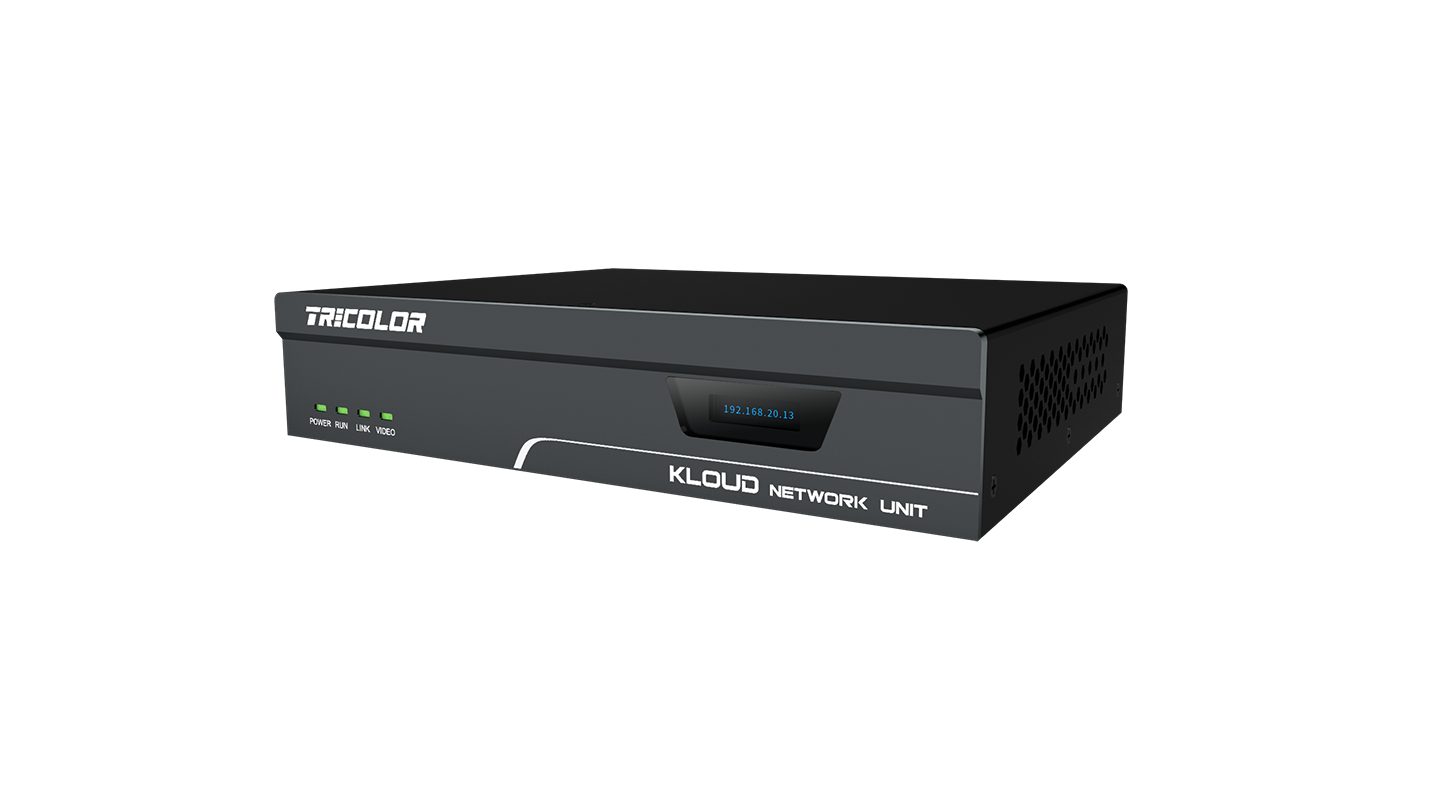

Kloud-M5 series products are professional high-definition AV over IP codec products developed by Tricolor Technology Co., Ltd. The Kloud-M5 series features the latest H.265 high-performance video compression algorithm with low bandwidth consumption, low transmission delays, high definition picture, high picture fidelity and high stability.
Kloud system has perfect distributed work stations management functions, including such as multi-screen control, simultaneous control of multiple PC, visual OSD menu, work stations cooperation and so on.
· Support 4K@30Hz ultra high definition video network transmission, and backward compatible with other resolutions. Also supports video signal loop-through output
· Support remote KVM mouse, keyboard control
· Compatible with H.265/HEVC and H.264/AVC encoding free choice
· Support for encoding rate custom adjustment
· Support transmission screen color brightness adjustment
· Support multiple sets of signal source character custom overlay
· Support front panel IP address display
· Support TRS (3.5 mm) audio signal output simultaneously with video signal output
· Support TRS (3.5mm) reverse audio capture function
· Compatible with H.265/HEVC and H.264/AVC automatic decoding
· Support decoded pre-set function, scene retrieval
· Support decoded signal source :signal source and preview overlook function
· Support web page online configuration and management functions
· Support device firmware system online upgrade
· Support front panel IP address display
Specification
Input Node
Equipment type | Kloud-M5-EN Series | |
Resolution | 1080P@60 | 4K@30 |
Interface type | DVI、SDI、HDMI1.3 | HDMI1.4 |
Video loop out | DVI、SDI、HDMI1.3 | HDMI1.4 |
Audio input | Support | Support |
Audio loop out | Support | Support |
Audio output | Support | Support |
Network interface | RJ45 interface x1 | RJ45 interface x1 |
KVM control | Support | Support |
LCD screen | Support | Support |
Control mode | Network, IR, serial port | Network, IR, serial port |
Equipment size | 210mm x 166mm x 43mm (8.17in x 6.53in x 1.69in) | |
Equipment weight | Single node：1Kg (2.2 lb.) | |
Heat dissipation method | Passive heat dissipation | |
Working temperature | 0℃~40℃ | |
Storage temperature | -10℃~60℃ | |
Equipment power consumption | Less than 25W | |
Storage environment | No corrosive and solvent gases, no dust, no strong magnetic field interference | |
POE power supply | Some models support | Some models support |
Cabinet installation | Special mounting tray for standard cabinet | |
Output Node
Kloud distributed network output node | |
Equipment type | Kloud-MV5-DN Series |
Resolution | 4K@30 |
Interface type | HDMI1.4 |
Audio output | Support |
Network interface | RJ45 interface x2 |
KVM control | Not support |
LCD screen | Support |
Control mode | Network |
Equipment size | 210mm x 166mm x 43mm (8.17in x 6.53in x 1.69in) |
Equipment weight | Single node：1Kg (2.2 lb.) |
Heat dissipation method | Passive heat dissipation |
Working temperature | 0℃~40℃ |
Storage temperature | -10℃~60℃ |
Equipment power consumption | Less than 25W |
Storage environment | No corrosive and solvent gases, no dust, no strong magnetic field interference |
POE power supply | Some models support |
Cabinet installation | Special mounting tray for standard cabinet |
Interface | Name | Description |
| VIDEO—DVI IN | DVI Video input interface |
VIDEO—DVI LOOP | DVI Video ring out interface | |
| AUDIO—IN | 3.5mm audio input interface |
AUDIO—LOOP | 3.5mm audio ring out interface | |
AUDIO—OUT | 3.5mm audio output interface | |
| PC-USB | USB Type B interface |
| LINK—LAN | RJ45 network output interface |
| RS232 | RS232 control interface |
RS485 | RS485 control interface | |
| IR | Infrared interface |
| 12V DC | 12V power supply with lock catch |
Name | Description | |
| VIDEO—HDMI OUT | Video output |
| AUDIO—IN | Reverse audio input |
AUDIO—OUT | Audio output | |
| USB | Mouse keyboard interface |
| LINK—LAN | RJ45 network input interface |
| RS232 | RS232 control interface |
RS485 | RS485 control interface | |
| IR | Infrared interface |
| 12V DC | 12V power supply with lock catch |
Workstations Manager
The Kloud-M5 distributed system can achieve perfect KVM workstations management.Multiple users can control the remote computers with workstation mouse and keyboard at the same time.
The User-end output nodes provide the visual OSD menu. With shortcut keys, the OSD menu can help workstations to realize fast switching, one-step pushing and signals pulling.
Mouse Cross-over
Users can control multiple remote computers through a set of keyboards and multiple displays. The workstation mouse can be freely cross between different workstation’s screens.
One Step “Pushing”
The operator can one-step “push” the video to other workstations through the OSD menu or “push” the currently displayed video to the video wall screen for information sharing .
