Tabletop Interconnect Box which supports HD conversion and long distance transmission. It can transmit VGA, Audio and HDMI signals up to 100 meters over one CAT cable (Twisted Pair Cable Type: CAT5, CAT5E, CAT6) which is easy to install.
Delivers uncompressed video & digital audio to a network of devices or to a single device (point to point). It supports resolutions up to 4K@30 and Blu-Ray Player and it is HDCP Compliant (Optional).
· Output high-definition video signals, audio signals and transmission distances of 100M through a single CAT5, 5e and 6 network cable;
· Support 4K HD signal
· Input support: VGA video, audio, HDMI
· Support HDBaseT protocol
· Can be used with the TRICOLOR matrix switcher
· Support USB charging function
Model | TS-HD501 |
Dimensions | Panel: 193mm*150mm R=16mm Cutout Dimension: 183mm*140mm R=12mm |
Video | VGA Input Signal Level Range: 1.0Vp-p VGA Input Impedance: 75 ohms Resolution Support: up to 1920 x 1080P @ 60Hz Data Rate(Max): 4.95Gbps (R.G.B each 1.65 Gbps) Clock Jitter: <0.2UI Transmission Delay (Max)：5ns (±1ns) Signal Type: DVI-D TMDS signal in DVI1.0 standard Signal Strength T.M.D.S: 800mVp-p DDC: Built-in HDCP: Support HDCP1.4 Output: HDBaset(RJ45) Output Signal Level Range: 1000mV Output Impedance: 100 ohms Data Rate: 20 Gbps Twisted Pair Cable Length: Up to 100 meters |
AUDIO | Gain: 0dB；THD+N (Total Harmonic Distortion plus Noise): 0.05% @1kHz (Rated Voltage) Frequency Response：20Hz-20KHz CMRR: >75dB @ 20Hz-20KHz Input: Stereo Analog, S/PDIF Input Connector: 3.5mm audio, HDMI type A Input Impendance: >10k omhs Input Level(Max): +21 dBu |
ENVIROMENTAL | Power: ≤20W Temperature (Storage): -20° to 150°C Temperature (Operating): -10° to 55°C Humidity: 20% to 95%, RHL non-condensing |
Model | TS-HD601 |
Dimensions | Panel: 199mm*129mm R=16mm Cutout Dimension: 191mm*121mm R=12mm |
Video | VGA Input Signal Level Range: 1.0Vp-p VGA Input Impedance: 75 ohms Resolution Support: up to 1920 x 1080P @ 60Hz Data Rate(Max): 4.95Gbps (R.G.B each 1.65 Gbps) Clock Jitter: <0.2UI Transmission Delay (Max)：5ns (±1ns) Signal Type: DVI-D TMDS signal in DVI1.0 standard Signal Strength T.M.D.S: 800mVp-p DDC: Built-in HDCP: Support HDCP1.4 Output: HDBaset(RJ45) Output Signal Level Range: 1000mV Output Impedance: 100 ohms Data Rate: 20 Gbps Twisted Pair Cable Length: Up to 100 meters |
AUDIO | Gain: 0dB；THD+N (Total Harmonic Distortion plus Noise): 0.05% @1kHz (Rated Voltage) Frequency Response：20Hz-20KHz CMRR: >75dB @ 20Hz-20KHz Input: Stereo Analog, S/PDIF Input Connector: 3.5mm audio, HDMI type A Input Impendance: >10k omhs Input Level(Max): +21 dBu |
ENVIROMENTAL | Power: ≤20W Temperature (Storage): -20° to 150°C Temperature (Operating): -10° to 55°C Humidity: 20% to 95%, RHL non-condensing |
Model | TS-HD100U |
Dimensions | 180mm*102mm*70mm |
Video | VGA Input Signal Level Range: 1.0Vp-p VGA Input Impedance: 75 ohms Resolution Support: up to 1920 x 1080P @ 60Hz Data Rate(Max): 4.95Gbps (R.G.B each 1.65 Gbps) Clock Jitter: <0.2UI Transmission Delay (Max)：5ns (±1ns) Signal Type: DVI-D TMDS signal in DVI1.0 standard Signal Strength T.M.D.S: 800mVp-p DDC: Built-in HDCP: Support HDCP1.4 Output: HDBaset(RJ45) Output Signal Level Range: 1000mV Output Impedance: 100 ohms Data Rate: 20 Gbps Twisted Pair Cable Length: Up to 100 meters |
AUDIO | Gain: 0dB；THD+N (Total Harmonic Distortion plus Noise): 0.05% @1kHz (Rated Voltage) Frequency Response：20Hz-20KHz CMRR: >75dB @ 20Hz-20KHz Input: Stereo Analog, S/PDIF Input Connector: 3.5mm audio, HDMI type A Input Impendance: >10k omhs Input Level(Max): +21 dBu |
ENVIROMENTAL | Power: ≤20W Temperature (Storage): -20° to 150°C Temperature (Operating): -10° to 55°C Humidity: 20% to 95%, RHL non-condensing |

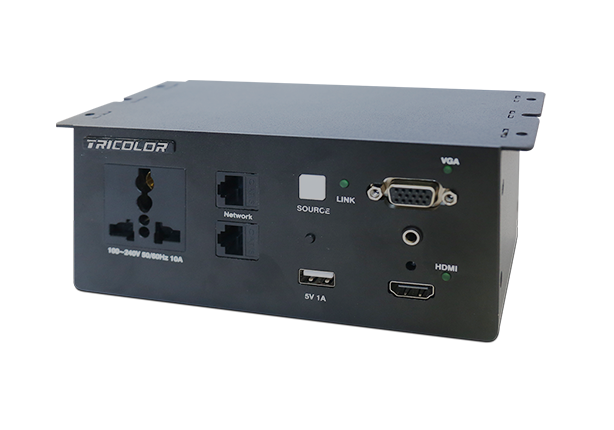

① Signal source switch button；
② USB charger 5V/1A；
③ HDMI1.4 Input ports；
④ VGA with audio；
⑤ General power supply interface；
⑥ RJ45；
⑦ 3.5mm audio output interface；
⑧HDBaesT Output ports；
⑨ Power interface；
1. Transmits HDMI, VGA and audio signals up to 100 meters over the twisted pair cable;；
2. Supports 4k@30, 1080p signal transmission distance is 100m, 4K signal transmission distance is 70m;
3. VGA with audio, HDMI signal inputs;
4. Support hdbaset protocol;
5. It must be used with hdbaset series receiver box or hdbaset matrix;
6. Supports USB charger 5V/1A.
