The NYX Series IP based controller is the latest distributed product provided by Tricolor Technology for the needs of networked and IP-based users. Utilizing the Tricolor's unique video network transmission technology, it provides users with ultra-low latency and high-definition image quality for extreme audio and video experience.The NYX system integrates practical functions such as long-distance audio and video transmission, matrix switching, KVM workstations management, and video wall management.
The NYX workstations series provides users with the ultimate workstations operation experience with ultra-low latency preference, and also provides top level workstations’ functions such as push/pull between workstations, one-step video wall signal sharing, USB 2.0 high-speed transmission and so on.
With perfect visual management software, it has been widely used in joint scenarios, airport air operations center, conference communication, and information sharing among buildings.
· 4K@30Hz 4:4:4 Ultra HD video loss-less transmission, output display perfect restore original image quality
· Ultra-low delay transmission, transmission delay ≤ 35ms, fast and smooth signal switching, no black field, no flash screen
· A single video source supports simultaneous requests by multiple users, requesting ≥ 1000 channels
· Massive IP video access, compatible with H.264/AVC standard format network stream decoding
· Supports the docking display of multiple network streaming devices and third-party security platforms
· Support large scale video wall functions, which can realize large-screen video stitching, multi-view, roaming, windowing, picture-in-picture, etc
· Supports full-screen sync function for perfect simultaneous display of large-scale splicing screens and fast-changing images
· Support multiple scene save and retrieve
· Functions, save scene layout to the system for seamless switchin
· Support signal source character custom overlay, freely superimpose text information on the source screen
· Supports high-definition scrolling caption display, subtitle size, position, content, direction of motion and speed can be adjusted freely
· Support HD basemap function, large screen group can display large resolution background image without using third party equipment
· Source preview function, the control software can preview the source screen in real time
· Detailed authority division control to support multi-user grouping and hierarchical decentralization control;
· Any node dropped does not affect the overall system operation
· Front panel IP address display for quick device positioning
· Support device firmware online upgrade function
· Support 7x24 hours of continuous work capability
Specifications
Input Node
(*Optical network node contains the fiber optical connection and optical network backup function)
Resolution | 1080P@60 | 4K@30 |
Interface Type | DVI、HDMI、SDI | HDMI |
Video Loop | DVI、HDMI、SDI | HDMI |
AudioInput | Support | Support |
AudioLoop Out | Support | Support |
Reverse Audio Output | Support | Support |
Network Interface | RJ45 interface x2 | RJ45 interface x4 |
Fiber Interface* | SFP+ 1Gbps | SFP+ 10Gbps |
KVM Control | Support | Support |
USB transparent transmission | Support | Support |
Remote Switch | Support | Support |
LCD Panel | Support | Support |
Equipment Size | 210mm x 166mm x 43mm (8.17in x 6.53in x 1.69in) | |
Equipment Weight | Single node: 1Kg (2.2 lb.) | |
Heat Dissipation Method | Passive cooling | |
Operating Temperature | 0°C~40°C | |
Storage Temperature | -10°C~60°C | |
Equipment Power | Less than 25W | |
Storage Environment | Non-corrosive and solvent gas, no dust, no strong magnetic field interference | |
POE power Supply | Support | Support |
Cabinet Installation | Dedicated installation tray for standard cabinet | |
Output Node
(*Optical network node contains the fiber optical connection and optical network backup function)
Resolution | 1080P@60 | 4K@30 |
Interface Type | DVI, HDMI | HDMI |
Audio Output | Support | Support |
Reverse Audio Input | Support | Support |
Network Interface | RJ45 interface x2 | RJ45 interface x4 |
Fiber Interface* | SFP+ 1Gbps | SFP+ 10Gbps |
KVM Control | Support | Support |
USB Transparent Transmission | Support | Support |
Remote Switch | Support | Support |
LCD Panel | Support | Support |
Equipment Size | 210mm x 166mm x 43mm (8.17in x 6.53in x 1.69in) | |
Equipment Seight | Single node: 1Kg (2.2 lb.) | |
Heat Dissipation Method | Passive cooling | |
Operating Temperature | 0°C~40°C | |
Storage Temperature | -10°C~60°C | |
Equipment Power | Less than 25W | |
Storage Environment | Non-corrosive and solvent gas, no dust, no strong magnetic field interference | |
POE power Supply | Support | Support |
Cabinet Installation | Dedicated installation tray for standard cabinet | |
*Optical Network Node contains the fiber optical connection and optical network backup function
Product Model
Input Node
Name | Network node model | Optical Network Node Type |
NYX zero delay DVI input node | NYX-MV5-EN-D | NYX-MV5-ENF-D |
NYX zero delay HDMI1.3 input node | NYX-MV5-EN-H | NYX-MV5-ENF-H |
NYX zero delay SDI input node | NYX-MV5-EN-S | NYX-MV5-ENF-S |
NYX zero delay HDMI1.4 input node | NYX-MV5-EN-UH | NYX-MV5-ENF-UH |
Output Node
Name | Network node model | Optical Network Node Type |
NYX zero delay DVI KVM output node | NYX-V5-DN-D | NYX-V5-DNF-D |
NYX zero delay HDMI1.3 KVM output node | NYX-V5-DN-H | NYX-V5-DNF-H |
NYX zero delay HDMI1.4 KVM output node | NYX-V5-DN-UH | NYX-V5-DNF-UH |
*Optical network contains fiber optical interface and optical network backup function

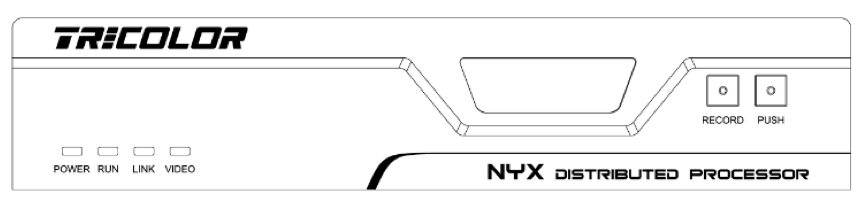

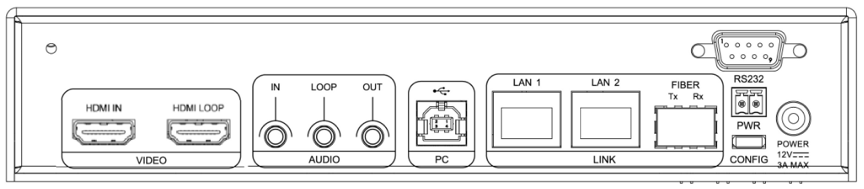

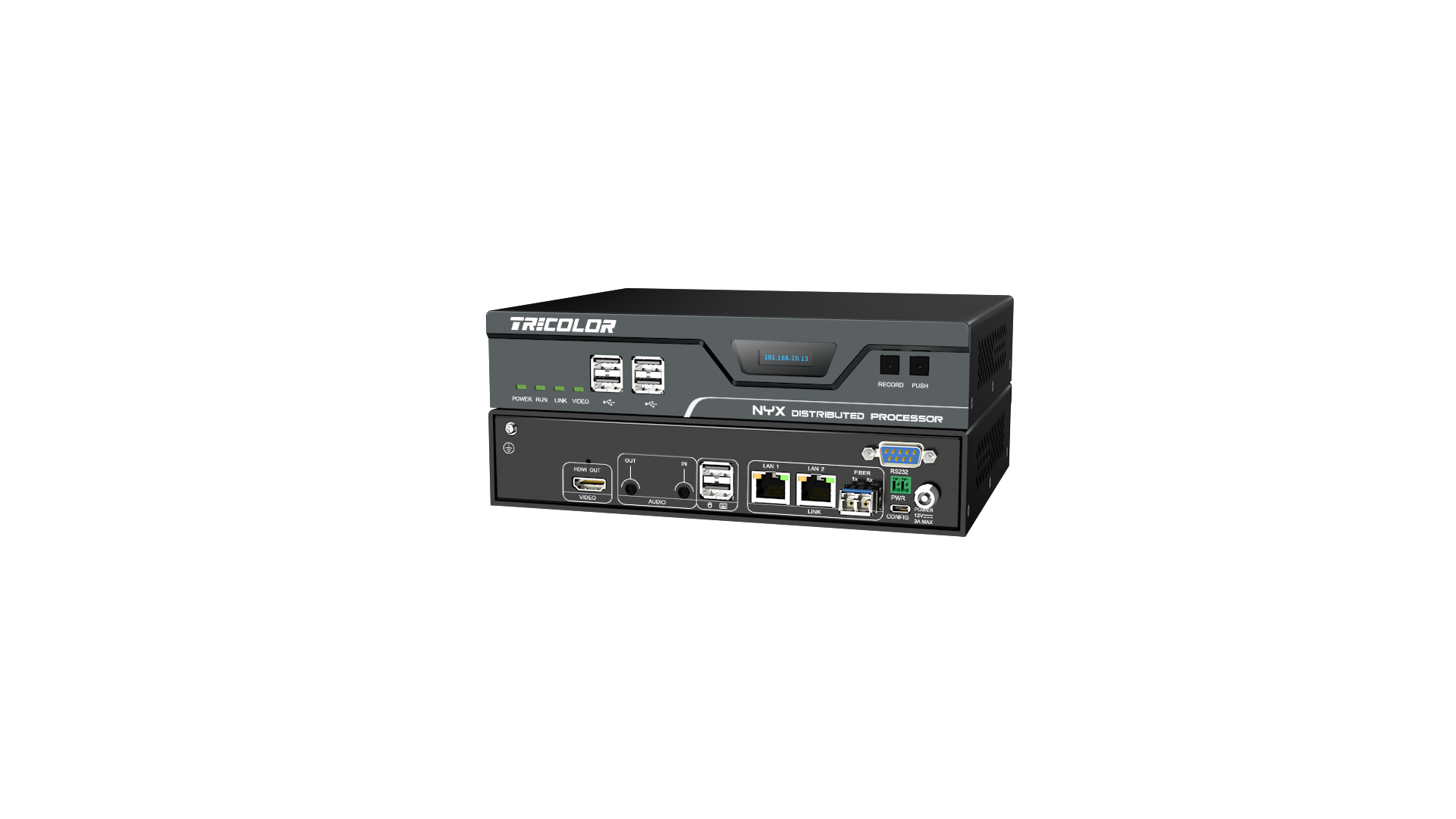

Encoding
Interface | Name | Description |
| State LEDs | Show device running state |
| OLED Screen | Show device IP address |
Interface | Name | Description |
| VIDEO—IN | Video input interface |
VIDEO—LOOP | Video loop out interface | |
| AUDIO—IN | 3.5mm audio input interface |
AUDIO—LOOP | 3.5mm audio loop out interface | |
AUDIO—OUT | 3.5mm audio output interface | |
| PC—USB | USB Type B interface |
| LINK-LAN 1/2 | RJ45 network output interface 1/2 |
LINK-FIBER | SFP+ Optical port | |
| RS232 | DB9 RS232 control interface |
| PWR | Remote switch interface |
| Config | Debugging interface |
| 12V DC | 12V power supply with lock catch |

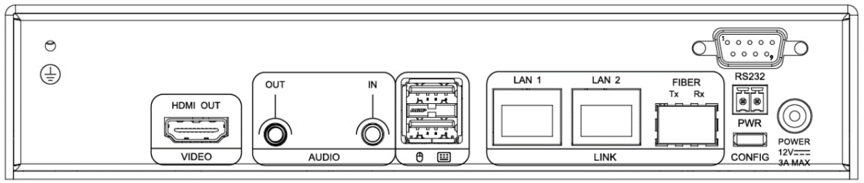

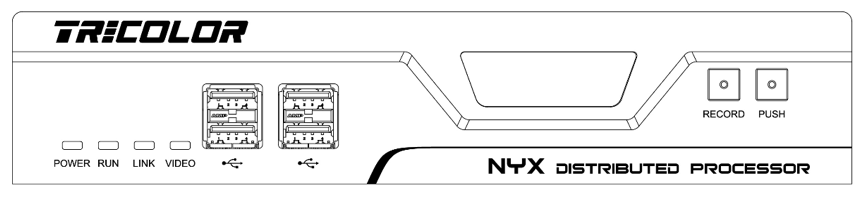

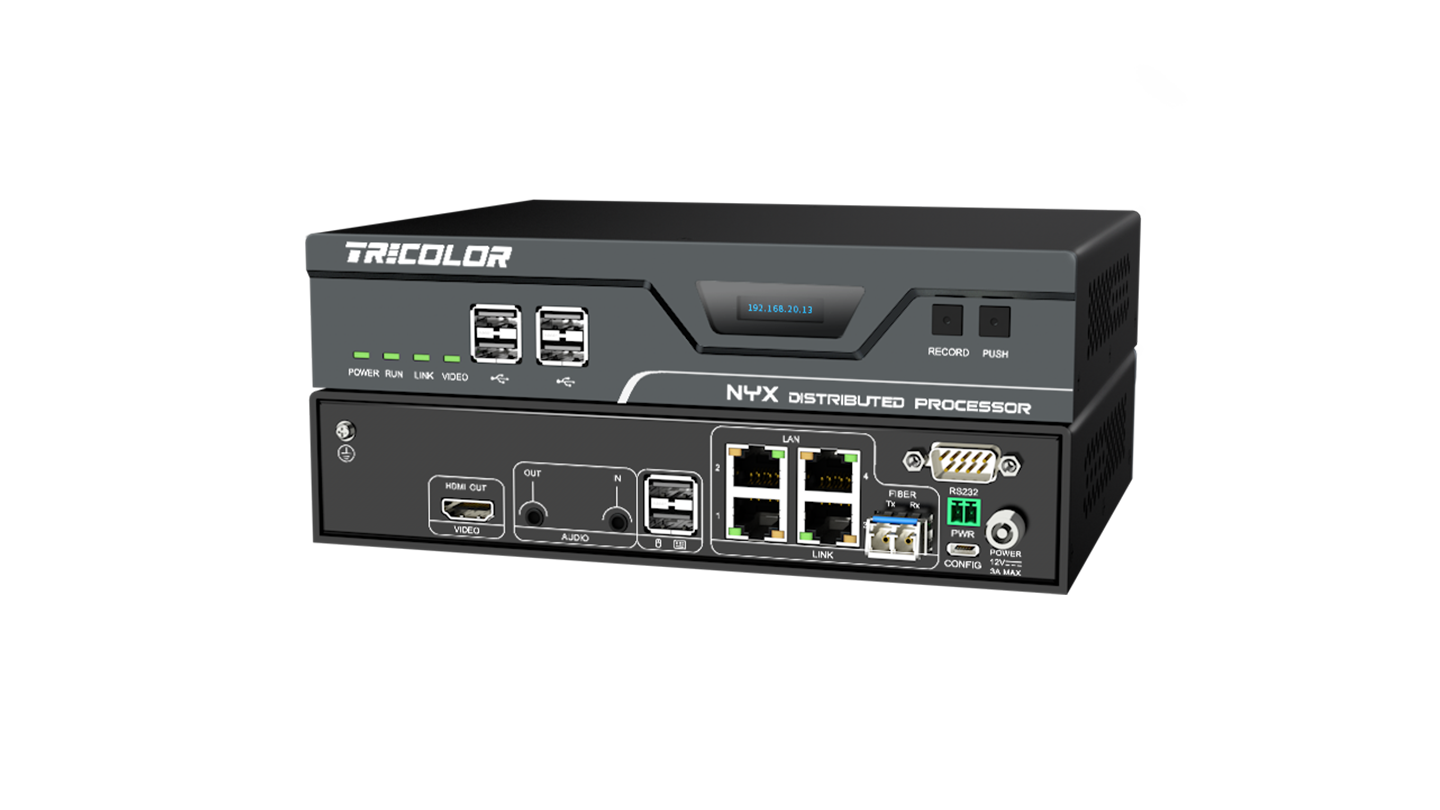

Decoding
Interface | Name | Description |
| State LEDs | Show device running state |
| OLED Screen | Show device IP address |
| USB2.0 Ports | Use for USB 2.0 connection of peripheral devices |
Interface | Name | Description |
| VIDEO-HDMI OUT | Video output |
| AUDIO—IN | Reverse audio input |
AUDIO—OUT | Audio output | |
| User-Mouse/keyboard | Mouse keyboard interface |
| LINK-LAN 1/2 | RJ45 network output interface 1/2 |
LINK-FIBER | SFP+ Optical port | |
| RS232 | DB9 RS232 control interface |
| PWR | Remote switch interface |
| Config | Debugging interface |
| 12V DC | 12V power supply with lock |
Visually Lossless Video
NYX dual-engine distributed series using the unique TR visual lossless compression algorithm over IP. Video signals are encoder with 4:4:4 color quantization, while maintaining original source quality and native resolutions.
Ultra-Low Latency
NYX dual-engine distributed series using TR visual lossless compression algorithm delivers professional-grade video with ultra-low latency, guaranteeing exceptional user experience and response time in any situation.
Workstations Manager
The NYX dual-engine distributed system can achieve perfect KVM workstations management.Multiple users can control the remote computers with workstation mouse and keyboard at the same time.
The User-end output nodes provide the visual OSD menu. With shortcut keys, the OSD menu can help workstations to realize fast switching, one-step pushing and signals pulling.
Mouse Cross-over
Users can control multiple remote computers through a set of keyboards and multiple displays. The workstation mouse can be freely cross between different workstation’s screens.
One Step “Pushing”
The operator can one-step “push” the video to other workstations through the OSD menu or “push” the currently displayed video to the video wall screen for information sharing .
USB2.0 High-speed Transmission
Through USB2.0 interface, the system can quickly share data within the network. Devices such as USB hard disks, external hard disks, USB cameras and other devices can quickly access the system at the user-end devices to achieve data information sharing with remote PCs.
Remote PC Power Switch
Through the unique switch interface, users can switch on or off the computers or other devices connected to the input node through the workstations’ OSD menu or a physical switch.
Real Time Video Preview
NYX dual-engine distributed series provide real-time preview of multiple video sources. With the real-time preview feature, Users can easily doing centralized management and real-time monitoring of any signal source to avoid the mis-operation caused by the inability to preview the video sources.
Reverse Audio Transmission
The microphone audio can be delivered through the reverse audio input port of user-end devices to reverse audio output port of the PC-end devices.
Multi-user Manager
The system has multiple divisions of rights. By setting different users and permission levels, different user rights and operation rights can be clearly defined. Multiple users can log in the system at the same time.
Online Upgrades
Easy Online Upgrade over the network port.
